Onward 6 Passenger

Onward 6 Passenger

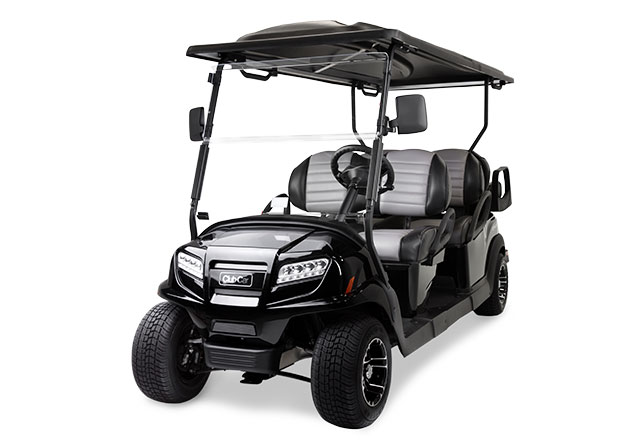

The Onward 6 Passenger vehicle is built for bringing family and friends together in the great outdoors. Our vehicle is specifically engineered with your comfort and safety in mind. Driving feels like a dream with stable suspension and impressive torque.
*Test Drives are only available in Jabodetabek & Bali
Choose your style
*This image uses the highest spec product
Specifications

HP Electric

Motor

375 Amp AC
Motor Controller

Horsepower

22.4 hp (16.5 kW) Peak

Batteries

(6) 8-volt

Charger

48V Shelf or On-board Option

Speed Range

18 mph (29 kph)

Electric

Steering

SportDrive™ — Self-compensating double reduction helical rack & pinion

Front Suspension

Independent A-arms with Hydraulic shocks

Rear Suspension

Patent pending w/ Track Bar and Automotive Grade Jounce Bumpers

Electric

Brakes

Self-adjusting, four-wheel mechanical drum

Park brakes

Foot actuated, 3-position

Electric

Body and Finish

Front: Painted TPO;
Center: Painted High Impact ABS;
Rear: Painted Surlyn

Tires

205 x 55 - 10 Tubeless

LxWxH

143 x 48.75 x 75 in
(363.2 x 123.8 x 190.5 cm)

Wheelbase

102 in (259 cm)

Ground Clearance

4.5 in (11cm)

Tread-Front and Rear

Front/Rear: 40 3/4/39 1/2

Total Vehicle Weight

1293 lbs

Frame Type

AlumiCore™ — Ladder-style
aluminum box beam
