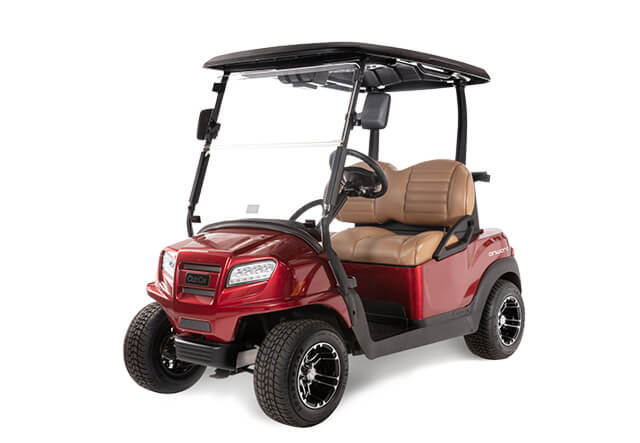

Onward 2 Passenger

Onward 2 Passenger
From 360° wrap-around bumpers to ergonomic seats, premium colors to easy-to-use design, the Onward 2 passenger provides safety, comfort and stability on the course and around the neighborhood.
*Test Drives are only available in Jabodetabek & Bali
Choose your style
*This image uses the highest spec product
Standard Colors
Specifications

Electric

Motor

250 Amp DC
Motor Controller

Horsepower

3.3 hp (2.4 kW) rated;
Peak 13 hp (9.6 kW)

Batteries

(6) 8-volt

Charger

E.R.I.C. Automatic, 48-volt;
UL, CSA listed

Speed Range

19 mph (30 kph)

Electric

Steering

Self-compensating double reduction
helical rack & pinion

Front Suspension

Independent leaf spring
w/dual hydraulic shocks

Electric

Brakes

Self-adjusting, rear wheel mechanical drum

Park brakes

Foot actuated, 3-position

Electric

Body and Finish

Front: Painted TPO;
Rear: Painted Surlyn

Tires

205 x 55 - 10 Tubeless

LxWxH

92 x 48 3/4 x 71 inches

Wheelbase

65 1/2 inches

Ground Clearance

4 1/2 inches

Tread-Front and Rear

Front/Rear: 36/40 inches

Total Vehicle Weight

975 lb

Frame Type

AlumiCore™ — Ladder-style
aluminum box beam
